NVMe vs SSD vs HDD:Storage Types for Servers

NVMe SSDs connect directly over PCIe and are the fastest common storage for servers, with very low latency and very high numbers of operations per second. SATA SSDs are much faster than hard drives but limited by the older SATA interface. HDDs (spinning hard disks) are slowest for random access but cheapest per terabyte. For websites, databases and applications, the biggest difference is in random read/write performance and latency, where SSDs, and especially NVMe, are far ahead of HDDs.

How each type works

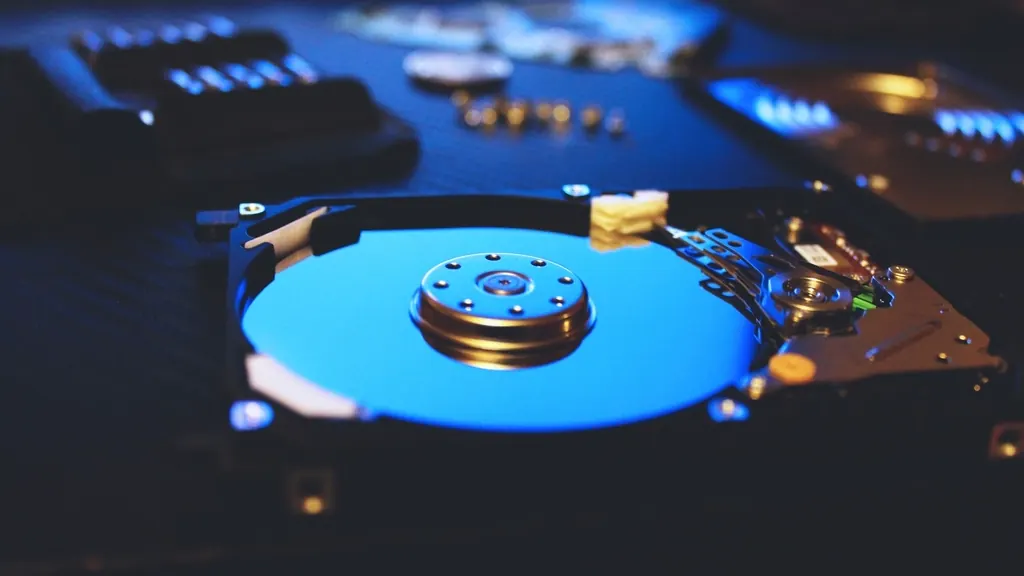

• HDD: data is stored on spinning magnetic platters read by a moving head. Each random access requires physical movement, which takes milliseconds.
• SATA SSD: flash memory with no moving parts, connected through the SATA interface and protocol originally designed for hard disks.
• NVMe SSD: flash memory connected through PCIe using the NVMe protocol, designed for flash, with many parallel queues.

Comparison

	HDD	SATA SSD	NVMe SSD
Random access latency	Milliseconds	Much lower	Lowest
Random operations per second (IOPS)	Low (hundreds)	High	Very high
Sequential throughput	Moderate	Limited by SATA (about 600 MB/s)	Several times higher than SATA
Cost per TB	Lowest	Moderate	Higher
Best for	Bulk storage, archives, backups	General servers	Databases, busy sites, VPS hosts

Exact numbers vary by model and configuration, so treat the table as relative.

Which workloads notice the difference

Notice a lot:

• Databases, which make many small random reads and writes.
• Dynamic websites with many PHP files, sessions and cache files.
• Busy shared and VPS hosts, where many users compete for storage.
• Search indexes, mail servers with many small files, and build systems.

Notice less:

• Static file serving that fits in memory cache.
• Large sequential workloads such as video files, where throughput matters more than latency.
• Backups and archives, where capacity and cost matter most.

Storage is not the whole story

• RAM caching: the operating system and database cache frequently read data in memory. With enough RAM, fewer requests reach the disk at all.
• RAID and redundancy: how disks are combined affects both performance and resilience.
• Shared storage: on cloud and VPS platforms, storage may be networked or shared between customers, so real performance depends on the platform, not just the drive type.
• I/O limits: hosting plans may cap your I/O speed or IOPS regardless of the hardware. See hosting resource limits explained.

What to ask a provider

• Is the storage NVMe, SATA SSD or HDD, and is it local or networked?
• Is there redundancy (RAID or replication)?
• Are there I/O or IOPS limits on the plan?
• Are backups stored on separate storage?

How to measure disk performance on a VPS

Tools like fio can benchmark random and sequential performance. Run tests during quiet periods and compare like with like (same block size, queue depth and test type). For ongoing monitoring, watch I/O wait in top or iostat: consistently high I/O wait means processes are waiting for storage. See how to check server resource usage.

Example: a quick random-read test with fio

To compare storage on two servers, run the same test on both (on a test file, during a quiet period):

fio --name=randread --filename=/tmp/fio-test --size=1G --rw=randread --bs=4k \
    --iodepth=32 --ioengine=libaio --direct=1 --runtime=60 --time_based --group_reporting

Look at the IOPS and the latency percentiles (clat). Random 4K reads are a good proxy for database-style access patterns. Delete the test file afterwards (rm /tmp/fio-test). On a VPS, results reflect the platform's storage and any I/O limits, not just the drive type, so they are useful precisely because they measure what you actually get.

Choosing storage by workload

Workload	Priority	Suitable storage
WordPress or WooCommerce site	Low latency for many small reads	NVMe or SSD
Busy MySQL/MariaDB database	Random IOPS and latency	NVMe
Media library, large downloads	Capacity and throughput	SSD, or HDD plus a CDN
Backups and archives	Cost per TB	HDD or object storage
Logs and analytics data	Write throughput and capacity	SSD or tiered storage

Many setups combine tiers: fast NVMe for the operating system, application and database, cheaper storage for backups.

Frequently Asked Questions

Does NVMe make a website faster?

It helps most when storage is the bottleneck, for example database-heavy or uncached workloads. A well-cached small site may see little difference.

Do SSDs wear out?

Flash has limited write endurance, but enterprise SSDs are rated for heavy server workloads and normally last many years. Backups protect you either way.

Is HDD storage still useful?

Yes, for large volumes of data accessed rarely: backups, archives and media libraries.
